Structure:the drawing equipment consists of main reduction box, die casing, wheel frame, wire brace
and electeical control system. The drawing blocks are verticaly fixed in sealed box body
the wire drawing machina was used to drawing aluminum wire from diameter 3.5mm to 0.6mm.
1.Dual inverter control .
Coordinate the speed with computer among drawing ,annealing and closing lines
2. Annealing adopt carbon brush conduction .
3. Single receiving line, automatic changer double vertical take -off devices and wire -bound set for the user ' s matching .
4. These devices include drawing ,annealing ,cooling and drying .
Technical parameter:

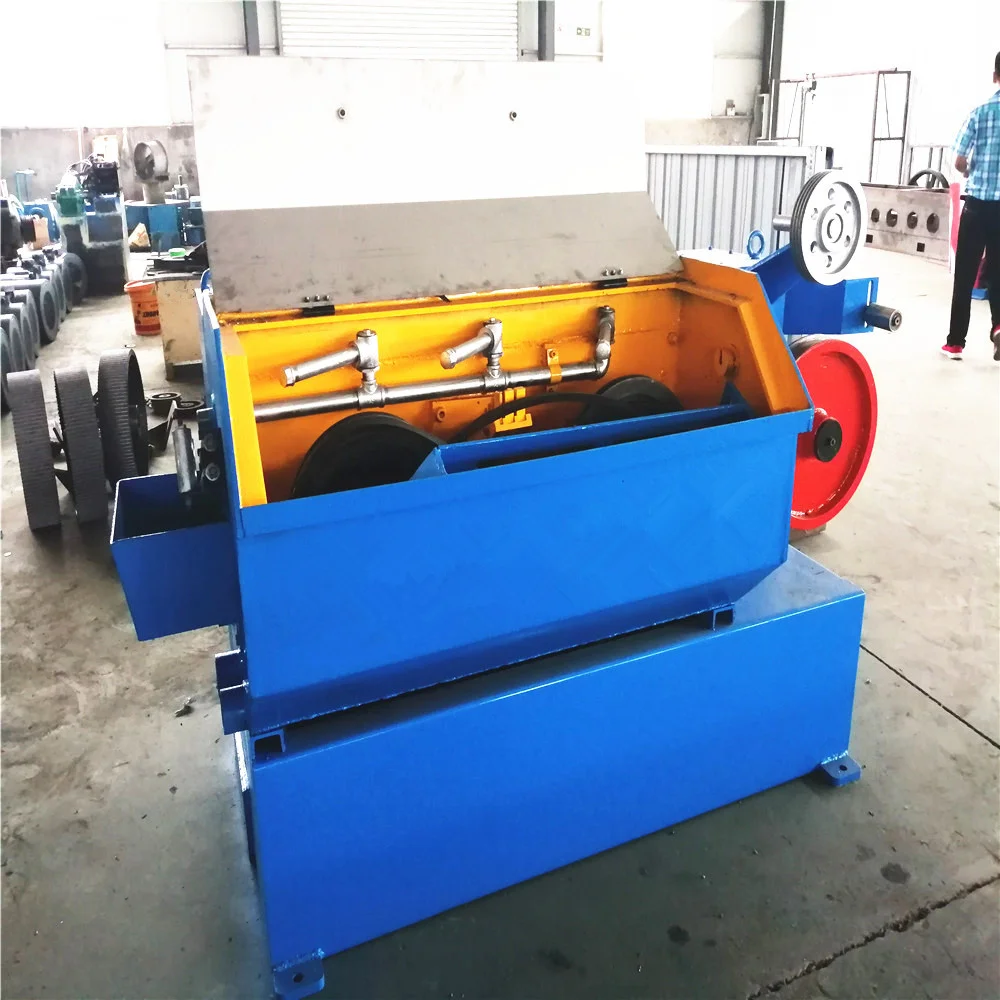

Machine Model | SKT—9D | SKT—13D | SKT—17D |
lnlet Dia.(mm) | Φ2.50—Φ3.50 | Φ2.5-3.5 | Φ2.50—Φ3.50 |
Outlet Dia(mm) | Φ1.1—Φ2.8 | Φ0.80—Φ2.2 | Φ0.40—Φ1.60 |
Drawing Die NO | 9 | 13 | 17 |
Main Motor(KW) | 45KW | 55KW | 55KW |
Cone number | 4 | ||
Cone material | Coated By Tungsten Carbide | ||
Drawing Speed | 1200-200M/min | ||
Take up machine motor | 11-15KW | ||
Take Up Bobbin Size(mm) | Φ500/Φ630 | ||
(KG) Capacity of take-up | 100-400 | ||
Transmission t\type | BY high precision grinding gear | ||
Body Structure | Ironed cast | ||
Correction system | Automatically Control | ||
Traversing type | Synchronous belt with regulating speed motor | ||
Tension control | Pneumatic balance by swing arm | ||
Brake | Electromagnetic brake | ||
Bobbin loading & unloading type | Shaft type | ||
Lubrication system of drawing | Spray type OR Immersing type
| ||
| |||
Annealing Structure | Vertical or Horizontal type (as your request) | ||
Max annealing voltage | 60V(DC) | 60V(DC) | 60V(DC) |
Max annealing currency | 2000A(DC) | 2000A(DC) | 2000A(DC) |
Annealing diameter | 0.4-2.2mm | ||
Annealing protection type | Steam OR Nitrogen | ||
Optional Equipment | A:Continuous annealing device vertical or horizontal type B:Basket Coiler machine | ||








SOKA (CN) Mechanical Co., Ltd. Was established in 2009,SOKA company is a modern enterprise with rich practical experience in manufacture and trade.Our factory has been established for more than 20 years.The machine sell well all over the world and are famous for their excellent quality.To enjoy high reputation at home and abroad,Deeply foreign cooperation buyer to soka company's favor and the trust .Also let the SOKA company product categories with the needs of the industry and continue to expand.Relying on existing factory products, we have become one of the most trusted partners of many foreign buyers in China.Now SOKA has been involved in the Building materials industry To provide one-stop, diversified services for foreign buyers.
Building materials industry products include:
Straight wire drawing machine, Pulley wire drawing machine,Water tank wire drawing machine,Inverted wire drawing machine, Annealing Furnace And Galvanizing Wire Production line
Fastener high speed new type nail making machine of wire nail and concrete nail , coil nail and roofing nail
Over the past decade, the SOKA service team has provided professional and customized solutions to nearly thousands of global buyers from more than 50 different countries.
Our overseas partners are from different countries
♦Central Asian countries: Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan and Turkmenistan.
♦ Asia: Vietnam, Cambodia, Indonesia.
♦Southeast Asia: Sri Lanka, Pakistan, India, Bangladesh, Nepal.
♦ West Asia: Turkey, Jordan, Saudi Arabia, Oman, Qatar, Kuwait ect.
♦Eastern Europe: Hungary, Ukraine, Romania, Russia, Belarus.
♦Northern Europe: Lithuania, and southern Europe: Spain, Macedonia, Slovenia, Serbia, Albania.
♦Africa: Egypt, Tunisia, Algeria, Morocco, Ethiopia, Kenya, Tasmania, Uganda, Ghana, Nigeria, Zambia, Zimbabwe, Malawi, Botswana, Mauritius.



01 Q:You product exported to which countries?
We exported to India,Argentina ,Uzbekistan,Tajikistan Russia,Algeria,Thailand,Egypt.,Tanzania,Qatar ,Hungary,Ghana,
Turkey,Bangladesh,Trinidad and Tobago,Lithuania
02 Q: If the client no any Production experience, How can help
the client?
A:we provide you with professional team is responsible for equipment installation and debugging
B: training your workers operate the machines,
C: Lifelong provide free technical guidance for our client
D:according to your budget to help you design the ideal investment programs
E: make sure the client with minimum investment and the highest return
03 Q:How about the quality and the service life of the machine ?
Concerning with every detail, every processing procedure of our products, using reliable components. Electrical appliances all adopt international famous brand (Such as Siemens, Schneider )
Running test will be carried out before delivery.
The machine at least use 8-20 years, the daily maintenance of equipment and and maintenance is very important ,
High configuration equipment use life more longer
04 Q:How long is your machine’s guarantee time?
Whole machine one year, electrical equipment 6 months (except wearing parts)
05 Q.How about the spare parts?
After we finish our deal, we will offer you a spare parts list for your reference.
Make sure we can long-term supply the relevant components of machines and the maintenace service. But after the free period of service, you need to pay some charge according on the actual situation such as travel expense,standard hour plan and the components cost (factory price).
06 Q:How many workers are needed to operate the machine?
1-4 people According to the worker's operation skill level.
