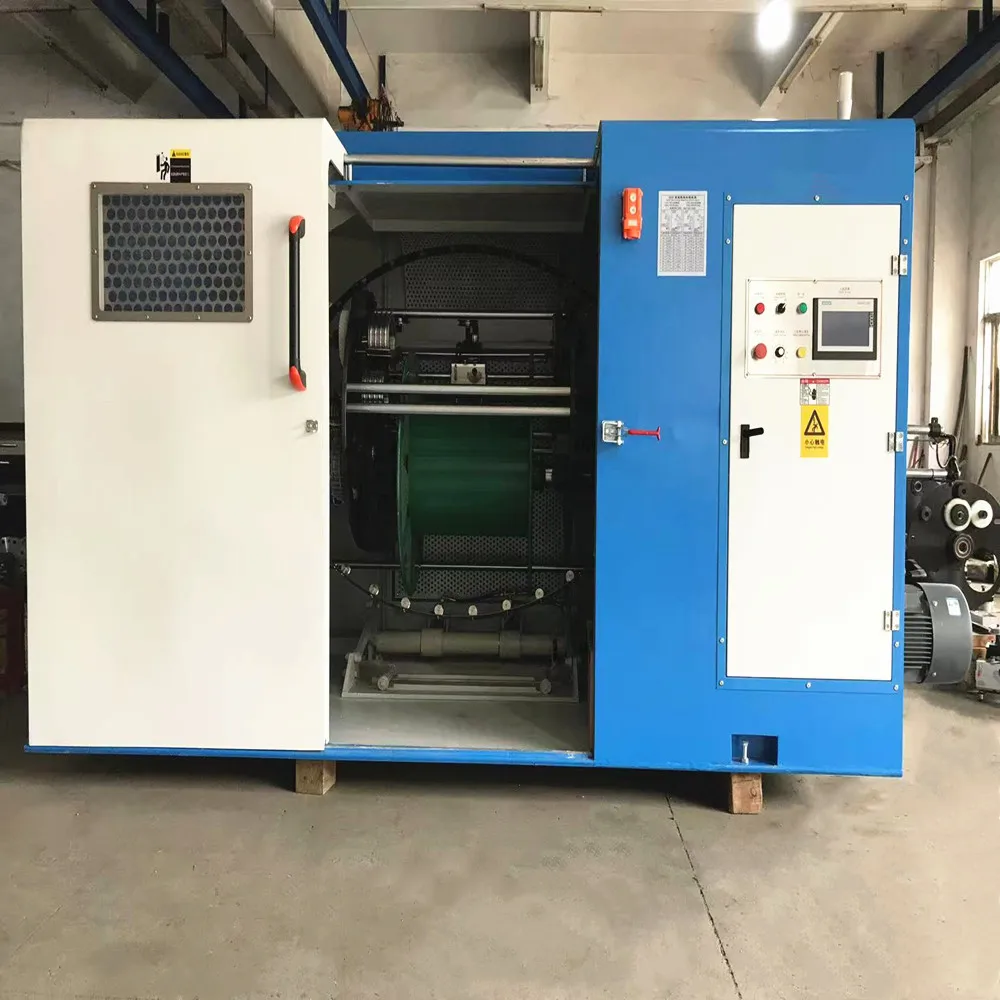

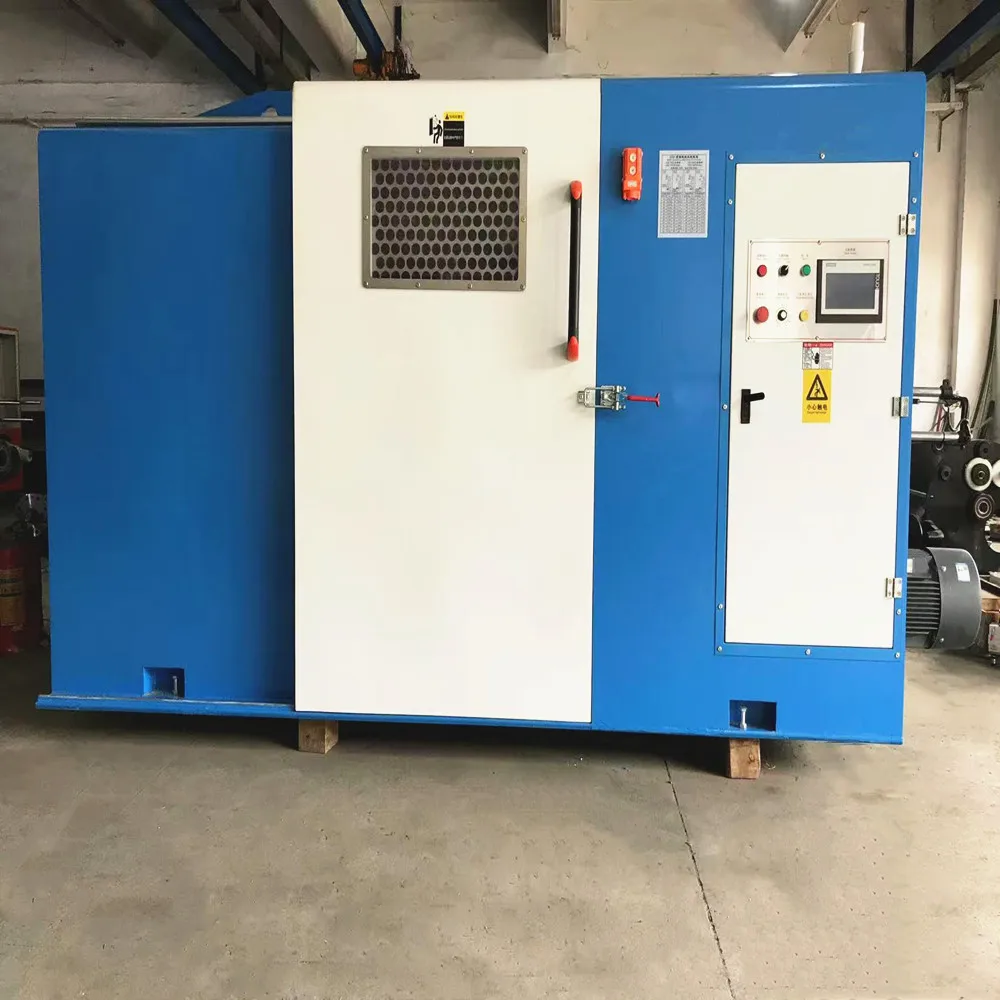

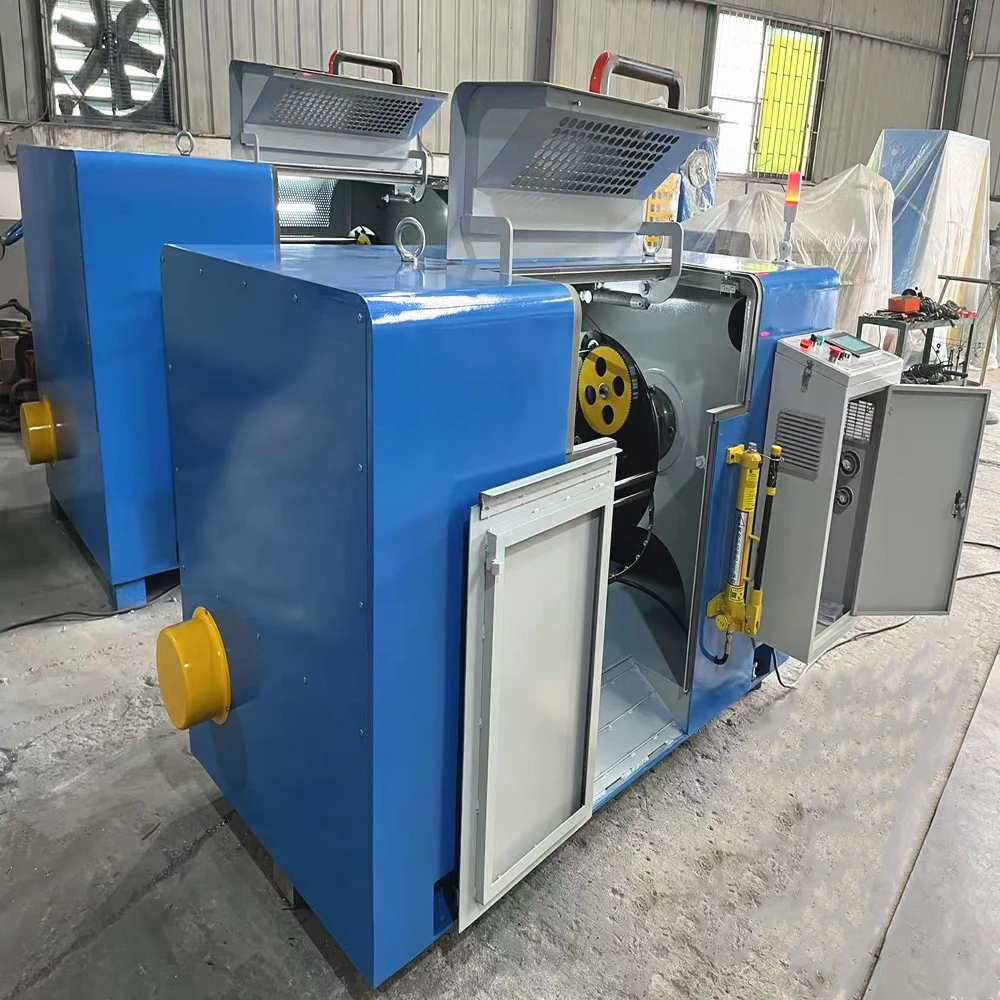

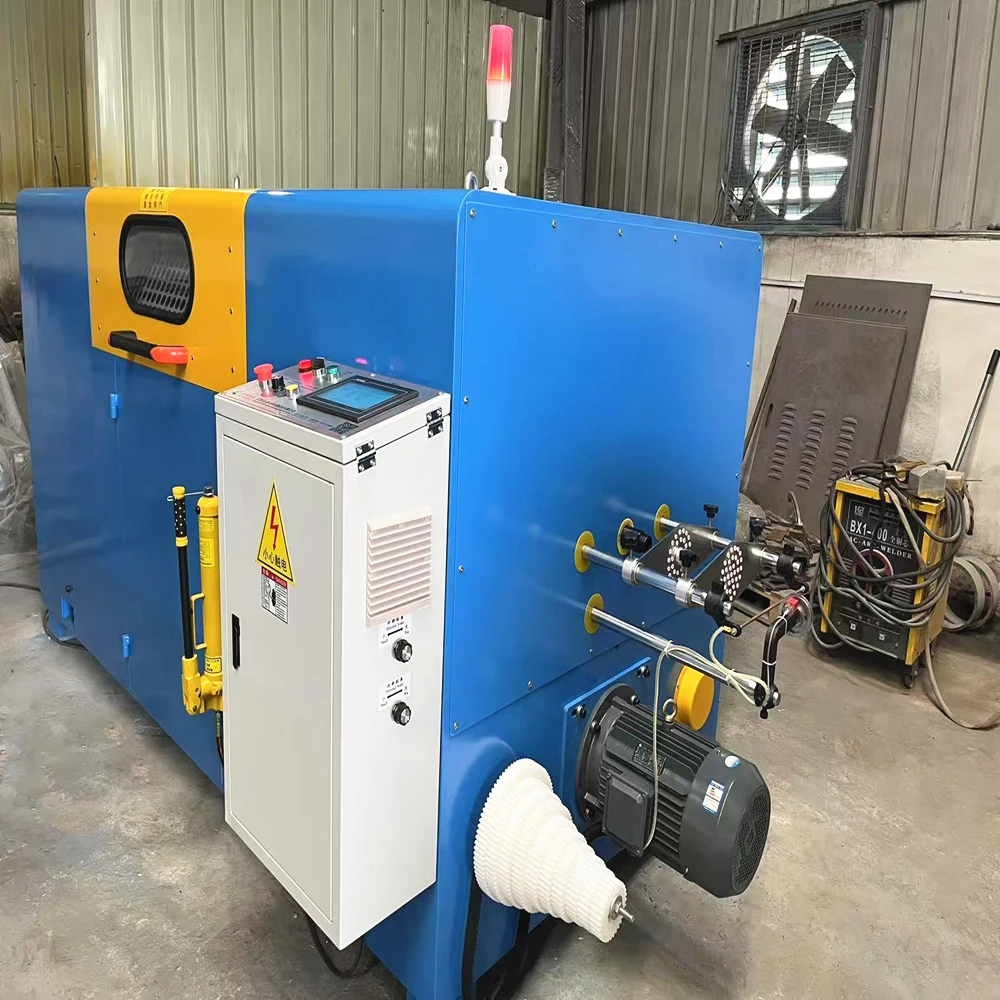

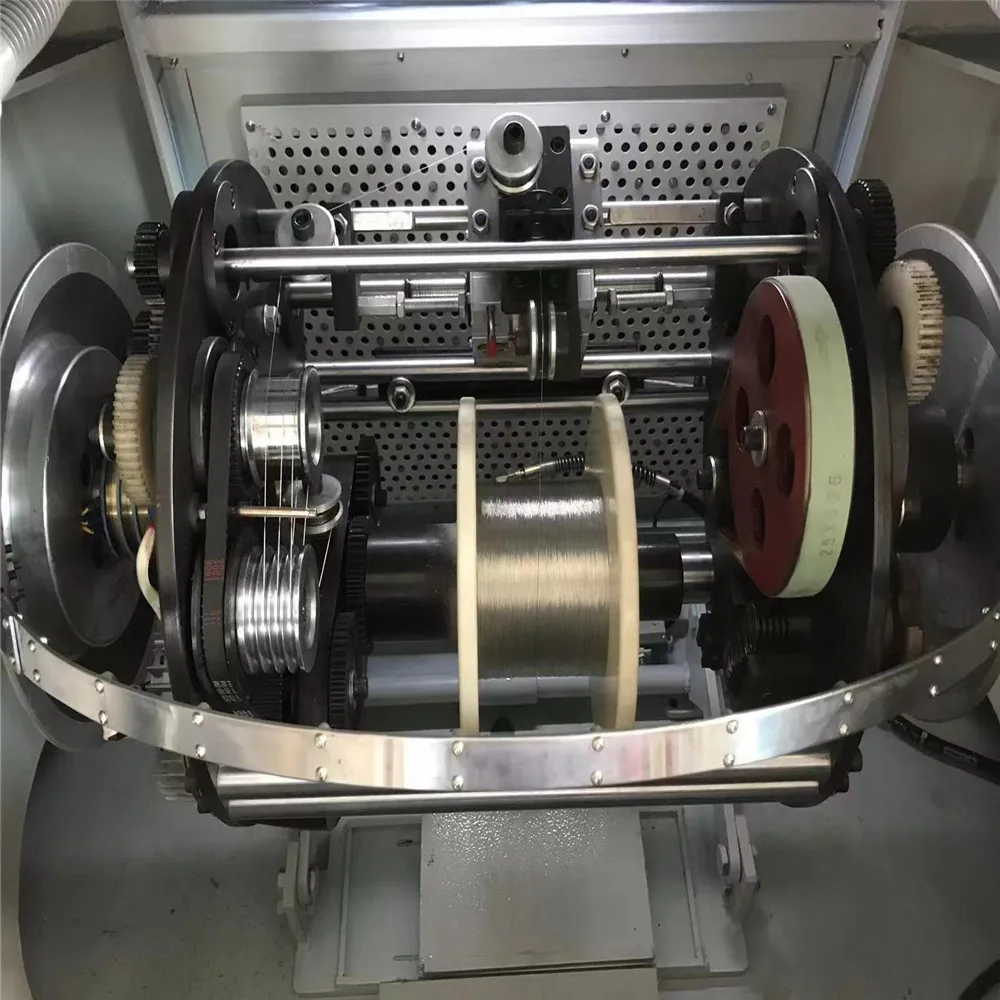

Promotion Best Selling Efficiency Twist Bunching Machine
Equipment Usage: The machine suitable for twisted equiline of more than seven strands of bare copper wire, electronic wire, power cord, RVV,RVS spline.
Main Feature:
1.Row line: DE bearing polished rod line, row of row spacing are adjustable.
2.The spindle lubrication: adopt manual type filling grease gun.
3.Break line protection: internal and external break line, automatic stop and alarm.
4.Brake: electromagnetic braking brakes, inside and outside the bolt brake.
5.Inching: electrical console the inching button.
6.Bearing: using imported from Japan, Germany, etc bearing (such as KOYO, NSK, FAG).
7.Take-up tension control: using 10 kg of magnetic powder clutch automatic tension control.
8.Speed display: Taiwan wei lun displayed on the touch screen PLC panel.
9.PLC electric control: equipment electrical parameter setting and operation, and approved by Taiwan wei lun PLC touch screen setting.
10.Closed to the power cord: closed to the power cord by users themselves to the electric cabinet.
11. Lights: red lights.
12. Counter Meter : Taiwan wei lun displayed on the touch screen PLC panel.
13. Machine noise below 75 dp, in accordance with the 1000 mm distance measurement.
Model Number | SK300 | SK500 | SK650 | SK800 |
Purpose | To bare copper wire,tin wire,enameled wire twisted | |||
Core specification | 0.05-0.28mm | 0.08-0.32mm | 0.23-0.64mm | 0.4-2mm |
Twisted area | 0.02-0.5mm² | 2.5mm² | 6mm² | 8mm² |
Twisted Pitch | 1.33-17.57 | 4.24-39.9 | 11.15-60.24 | 21.52-145.66 |
Machine rotating speed | 4000rpm | 3000rpm | 1600rpm | 1200rpm |
Machine power | 5HP | 7.5HP | 10HP | 15HP |
Traversing type | Polished rod wire | |||
Brake | Electromagnetic brake | |||
Roll tension | Electromagnetic Automatic tracking | |||
Machine size Size(LxWxH) | 1760X810X1020 | 2030X1020X1200 | 2460X1300X1300 | 2760X1400X1600 |
Weight | 1000KG | 2000KG | 3300KG | 4000KG |
SOKA (CN) Mechanical Co., Ltd. Was established in 2009,SOKA company is a modern enterprise with rich practical experience in manufacture and trade.Our factory has been established for more than 20 years.The machine sell well all over the world and are famous for their excellent quality.To enjoy high reputation at home and abroad,Deeply foreign cooperation buyer to soka company's favor and the trust .Also let the SOKA company product categories with the needs of the industry and continue to expand.Relying on existing factory products, we have become one of the most trusted partners of many foreign buyers in China.Now SOKA has been involved in the Building materials industry To provide one-stop, diversified services for foreign buyers.
Building materials industry products include:
Straight wire drawing machine, Pulley wire drawing machine,Water tank wire drawing machine,Inverted wire drawing machine, Annealing Furnace And Galvanizing Wire Production line
Fastener high speed new type nail making machine of wire nail and concrete nail , coil nail and roofing nail
01 Q:You product exported to which countries?
We exported to India,Argentina ,Uzbekistan,Tajikistan Russia,Algeria,Thailand,Egypt.,Tanzania,Qatar ,Hungary,Ghana,
Turkey,Bangladesh,Trinidad and Tobago,Lithuania
02 Q: If the client no any Production experience, How can help
the client?
A:we provide you with professional team is responsible for equipment installation and debugging
B: training your workers operate the machines,
C: Lifelong provide free technical guidance for our client
D:according to your budget to help you design the ideal investment programs
E: make sure the client with minimum investment and the highest return
03 Q:How about the quality and the service life of the machine ?
Concerning with every detail, every processing procedure of our products, using reliable components. Electrical appliances all adopt international famous brand (Such as Siemens, Schneider )
Running test will be carried out before delivery.
The machine at least use 8-20 years, the daily maintenance of equipment and and maintenance is very important ,
High configuration equipment use life more longer
04 Q:How long is your machine’s guarantee time?
Whole machine one year, electrical equipment 6 months (except wearing parts)
05 Q.How about the spare parts?
After we finish our deal, we will offer you a spare parts list for your reference.
Make sure we can long-term supply the relevant components of machines and the maintenace service. But after the free period of service, you need to pay some charge according on the actual situation such as travel expense,standard hour plan and the components cost (factory price).
06 Q:How many workers are needed to operate the machine?
1-4 people According to the worker's operation skill level.
